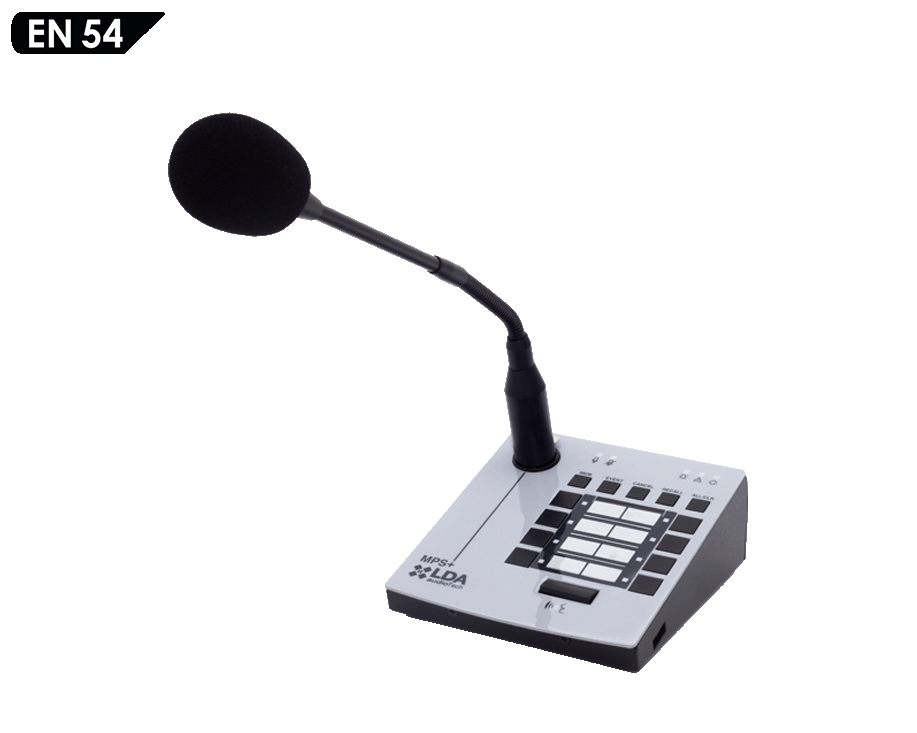

Multi-Zone Paging Microphone MPS-8Z+

Multi-zone Paging Microhpone MPS-8Z+

The MPS-8Z+ is a high-performance digital paging station with a compact and versatile design, the perfect features for the PA/VA system NEO and NEO+.


Up to 32 MPS-8Z+ microphones can be connected in a single ACSI v2 bus configuration, using a CAT5 cable. This connection allows a maximum distance of 1000 m and provides configurable priority levels between the devices connected to the bus. The MPS-8Z+ can be remotely controlled and configured.


It has 8 programmable buttons for up to 8 zones. Additional zone buttons can be added with MPS-8K+ expansion units.


The microphone has features such as “call all”, busy line signal, status and fault indicators, the ability to record a message for later playback as often and in as many zones as needed (Store & Forward), and other functions that help make this MPS-8Z+ the perfect device for your NEO and NEO+ PA/VA systems.


It also includes event buttons that, combined with the zone buttons, allow a wide variety of system configurations and functions, such as launching prerecorded messages, loading presets or creating zone groups.


The sound processing has been configured to achieve high quality results on the paging of voice, in terms of distortion, sensitivity, bandwidth and signal/noise ratio.


The paging microphone MPS-8Z+ has an iron housing to provide superior stability and protection against damage. Its neutral colours make it blend in perfectly with the needs of any room. All buttons are designed for intensive use.


This multi-zone microphone is easy to install as no high-level wiring is required.

Main Features
  • 8-zone programable buttons.
  • System event activator.
  • “Store & Forward” functionality.
  • LED indicators of busy and conceded word.
  • Recall function.
  • Auto-lock function.
  • Power-saving mode.
  • LED indicators for zone selection.
  • LED indicators of the LDA system’s state (emergency, fault, or link).
  • Powered directly from system via UTP cable.
  • Durable, high-performance microphone capsule.
